Rotel home theater / multi-channel :modellen 2016

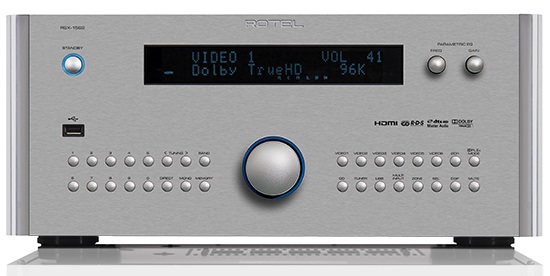

RSX1562 :3099,00 €

rotel rsx1562 surrondversterker stereohouse

RSX-1562 : 3099,00 €

A serious surround sound receiver with 7 x 100 Watts per channel in a space saving single 4U chassis.
Dimensions (W × H × D) 431 × 188 × 422mm
Front Panel Height 4U / 176.8mm
Power Requirements 120V, 60Hz
Power Consumption 500W Standby Power Consumption 0.5W
Weight 15.5kg

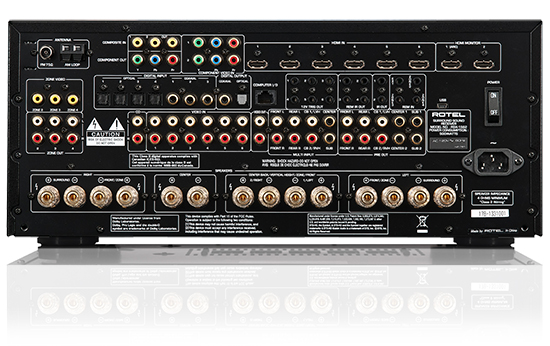

rsx1562 rotel surrondreceiver

More Specifications


Speaker Impedance 4O minimum
Input Sensitivity 200mV
Input Impedance 100kO v
Preout Level 1V
Output Impedance 1kO
Decodable Front USB Formats MP3, WAV, WMA, Ogg Vorbis (up to 48kHz 16-bit)
Decodable Digital Input Signals Dolby TrueHD, Dolby Digital, Dolby Digital EX, DTS HD Master Audio, DTS, DTS-ES, DTS 96/24, DTS-ES 96/24, LPCM up to 192kHz
Video Input Resolutions 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p/24Hz, 3D
Video Output Resolutions 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p/24Hz, 3D
Video S/N Ratio 45dB
Video Input Impedance 75O v Video Output Impedance 75O Video Output Level 1V
HDMI Specification Version 1.3, supporting Deep Color passthrough and Broad Color Space passthrough Version 1.4, supporting 3D passthrough and Audio Return Channel
Tuner Usable Sensitivity FM: 14.2dBf AM: 50µV/m
Tuner S/N Ratio FM: 70dB AM: 40dB
Tuner Harmonic Distortion (FM) 0.03%
FM Stereo Separation (1kHz) 45dB
Tuner Output Level FM: 1V AM: 500mV
Antenna Input FM: 75O AM: Loop Antenna




















Rotel home theater / multi-channel :archief voor 2015:sold out



SURROUND SOUND RECEIVERS

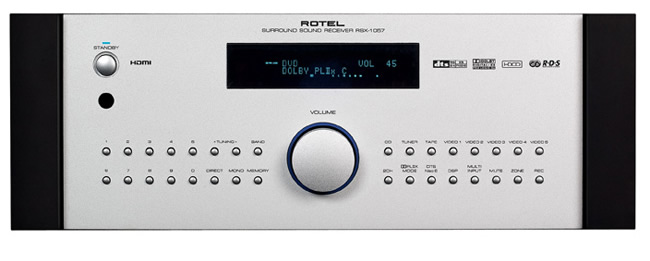

RSX-1057 7.1 DSP surround receiver : € 1500 :sold out



Rotel RSX-1057 surround sound receiver rsx1057



. 5 x 75 watts
. Dolby Digital, Dolby EX, Dolby Pro-Logic IIx, DTS, DTS ES, DTS ES Discrete, DTS Neo 6, HDCD, RDS
. 5 assignable digital inputs (3 coaxial, 2 toslink)
. 7 inputs (cd, tape, video 1-5) plus 7.1 channel input
. 2 HDMI V1.1 video inputs, 1 output
. 3 HD component video inputs
. Independent multi-room/multi-source with composite video
. Bi-directional RS-232 interface
. 3 assignable 12 volt triggers
. RR-1050 learning remote control

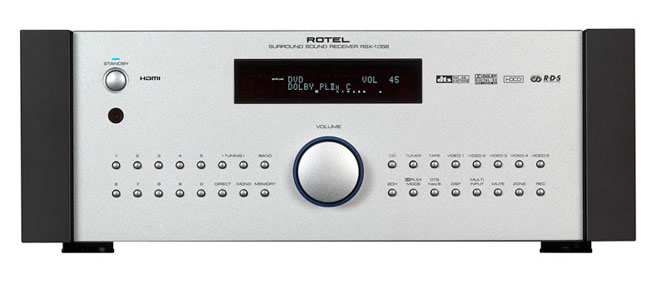

RSX-1058 7.1 DSP surround receiver : € 2000 :sold out

Rotel RSX-1058 surround sound receiver rsx1057



. 5 x 75 watts
. Dolby Digital, Dolby EX, Dolby Pro-logic llx, DTS, DTS ES, DTS ES Discrete, DTS Neo 6, HDCD, RDS
. 7 assignable digital inputs (3 coaxial, 4 toslink)
. 7 inputs (cd, tape, video 1-5) plus 7.1 channel input
. 4 HDMI V1.1 inputs with 1 output and 720p/1080p scaling
. 3 HD component video inputs
. 3 Independent multi-room/multi-source with composite video
. Bi-directional RS-232 interface
. 6 assignable 12 volt triggers
. RR-1060 learning remote control

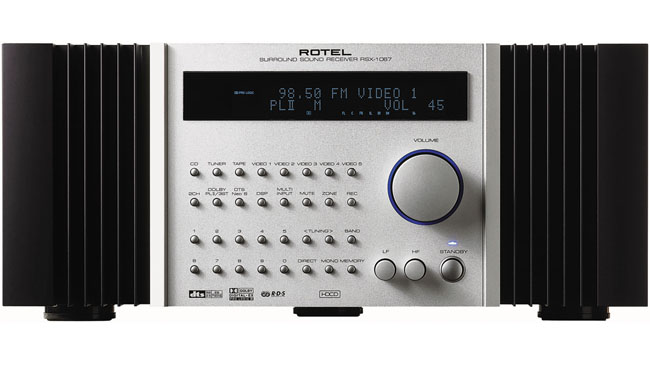

RSX-1067 7.1 DSP surround receiver : € 3000 :sold out

Rotel RSX-1067 surround sound receiver rsx1057



. 7 x 100 watts
. Dolby Digital, Dolby EX, Dolby Pro-Logic IIx, DTS, DTS ES, DTS ES Discrete, DTS Neo 6, HDCD, RDS
. 5 assignable digital inputs (3 coaxial, 2 toslink)
. 7 inputs (cd, tape, video 1-5) plus 7.1 channel input
. 3 HD component video inputs
. Independent multi-room/multi-source with composite video
. Bi-directional RS-232 interface
. 3 assignable 12 volt triggers
. RR-1050 learning remote control





SURROUND SOUND PROCESSORS :sold out

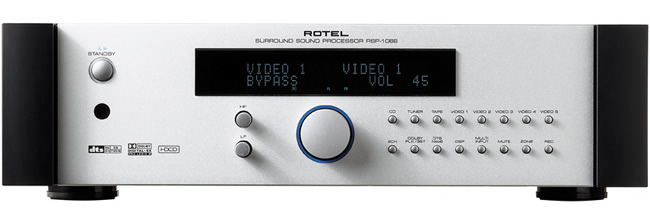

RSP-1068 7.1 voorversterker/processor : € 1700 :sold out

Rotel RSP-1068 surround processor



. Dolby Digital, Dolby EX, Dolby Pro-Logic IIx, DTS, DTS ES, DTS ES Discrete, DTS Neo 6, HDCD
. 8 inputs (cd, tape, tuner, video 1-5) plus 7.1 channel input
. 5 assignable digital inputs (3 coaxial, 2 optical)
. 3 HD component video inputs
. Independent multi-room/multi-source with composite video
. Bi-directional RS-232 interface
. 3 assignable 12 volt triggers
. RR-1050 learning remote control

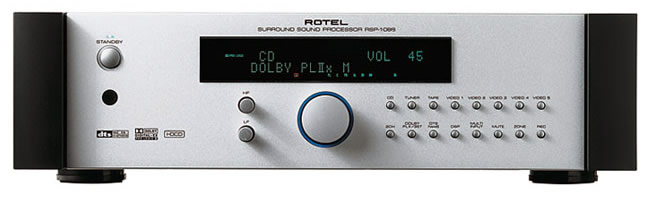

RSP-1069 7.1 voorversterker/processor : € 2000 :sold out

Rotel RSP-1069 surround processor

. Dolby Digital, Dolby EX, Dolby Pro-Logic IIx, DTS, DTS ES, DTS ES Discrete, DTS Neo 6, HDCD
. 8 inputs (cd, tape, tuner, video 1-5) plus 7.1 channel input
. 5 assignable digital inputs (3 coaxial, 2 optical)
. 3 HD component video inputs
. Independent multi-room/multi-source with composite video
. Bi-directional RS-232 interface
. 3 assignable 12 volt triggers
. RR-1050 learning remote control

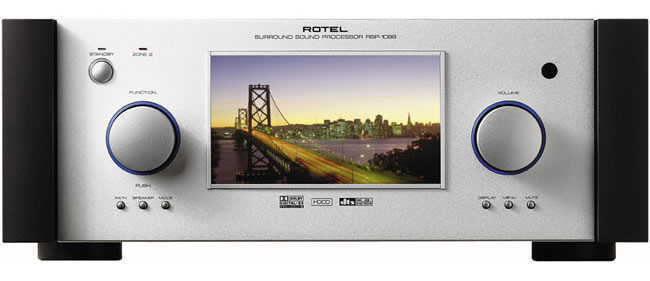

RSP-1098 7.1 voorversterker/processor met TFT-display : € 3500 :sold out

Rotel RSP-1098 surround processor

. Dolby Digital, Dolby EX, Dolby Pro-Logic IIx, DTS, DTS ES, DTS ES Discrete, DTS Neo 6, HDCD
. 8 inputs (cd, tape, tuner, video 1-5) plus 7.1 channel input
. 5 assignable digital inputs (3 coaxial, 2 optical)
. 3 HD component video inputs
. Independent multi-room/multi-source with composite video
. Bi-directional RS-232 interface
. 3 assignable 12 volt triggers
. RR-1050 learning remote control



MULTI-CHANNEL POWER AMPLIFIERS :sold out

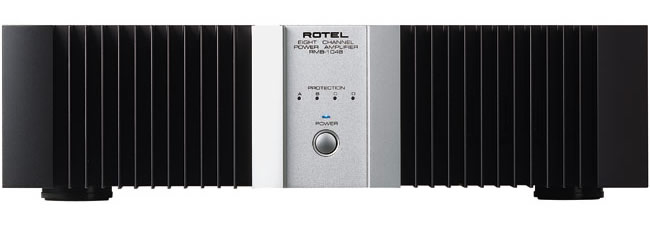

RMB-1048 high current 8-kanaals versterker : € 1100 :sold out

Rotel RMB-1048 meerkanaals versterkers



. 40 watts x 8 into 8 ohms
. Toroidal transformer
. 12 volt trigger
. Internal input link for custom applications
. Daisy chain link out, input trim

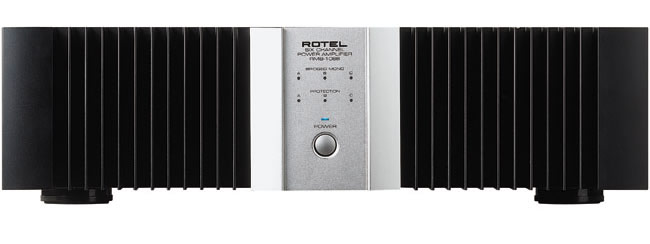

RMB-1066 high current 6-kanaals versterker : € 950 :sold out

Rotel RMB-1066 meerkanaals versterkers

. 60 watts x 6 into 8 ohms, or 150 watts x 3 into 8 ohms (bridged)
. Toroidal transformer
. 12 volt trigger or signal sensing
. Internal input link for custom applications
. Daisy chain link out, input trim

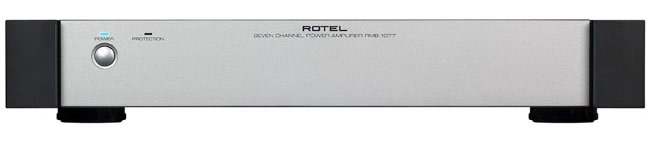

RMB-1077 klasse D 7-kanaals versterker : € 2500 :sold out

Rotel RMB-1077 meerkanaals versterkers

. 100 watts x 7 into 8 ohms
. ICEpower technology
. 12 volt trigger input



RMB-1075 high current 5-kanaals versterker : € 1500 :sold out

Rotel RMB-1075 meerkanaals versterkers

. 120 watts x 5 into 8 ohms
. Rotel toroidal transformers
. British slit foil capacitors
. 12 volt trigger

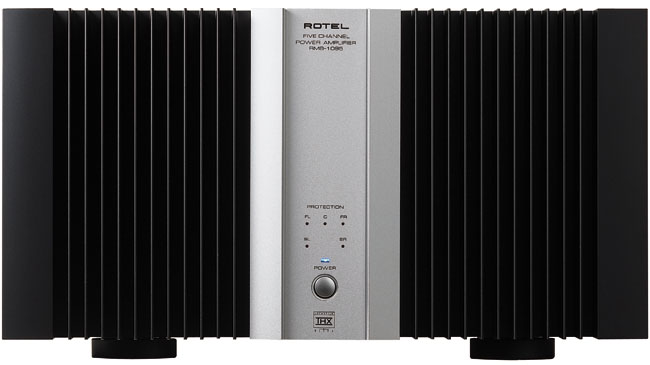

RMB-1095 high current 5-kanaals versterker : € 3000 :sold out



Rotel RMB-1095 meerkanaals versterkers

. 200 watts x 5 into 8 ohms
. Two Rotel toroidal transformers
. Balanced and unbalanced inputs
. British slit foil capacitors
