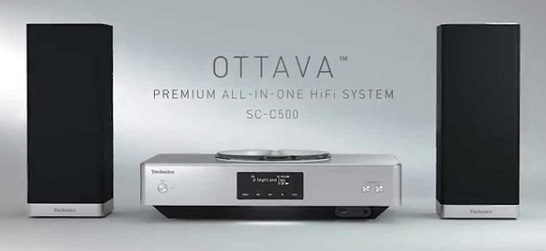

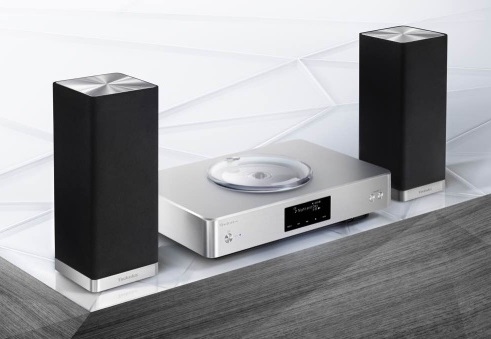

OTTAVA :PREMIUM ALL-IN-ONE HiFi SYSTEM
SC-C500 :1799,99 € prijssetting op 15.03.2016

Music will breeze.

Ordinary compact speakers are generally unable to provide powerful bass.

The OTTAVA™ speaker system has two woofers arranged symmetrically to reduce cabinet vibrations. Its spiral acoustic tube provide rich bass from a limited cabinet space. This speaker system delivers high-quality bass that is unimaginable from a speaker system with such a small cabinet.

In addition to powerful, robust bass, the speaker system must deliver everything from high to low frequency with no delay so the listener feels surrounded by clear, high-quality sound. Because the directivity of sound differs depending on the frequency range, the OTTAVA™ speaker system emits low-/mid frequency sounds and high-frequency sounds differently. Low-/mid frequency sounds are diffused by a reflector. For high-frequency sounds, tweeters are arranged in a multi-angled configuration.

The shape of the speaker cabinet is designed to prevent tweeter-emitted sounds from mixing with the sounds from other speaker units. This eliminates sound degradation and delivers high-quality sound to the listener regardless of the listening position.

These advanced sound technologies are packed into a truly-essential and high-quality enclosure that is also appealing to the eye.

nb:er is ook een versie leverbaar zonder luidsprekers SUC550 : 1299,99 €

Accurate Digital Technology

JENO Engine (Jitter Elimination and Noise-shaping Optimization)
LAPC (Load Adaptive Phase Calibration)
Battery Driven Clock Generator

Emotive Acoustic Technology

Spiral Bass Port with Twin Bass Drive Units

Output Power

Total 100 W

Connections

Digital Optical Input x 1 / USB-A input / USB-B input / Ethernet Terminal / Headphone Output / WiFi a,b,g,n / Bluetooth (AAC, SBC) / AirPlay

Digital Input Format

Digital Optical:

PCM up to 96 kHz 24 bit

DLNA, USB-A:

FLAC, WAV, AIFF, ALAC up to 192 kHz 24 bit, AAC up to 96 kHz 320 kbps, MP3, WMA up to 48 kHz 320 kbps, DSD 2.8 Mhz, 5.6 MHz

USB-B:

PCM up to 192 kHz 32 bit, DSD 2.8 MHz, 5.6 MHz with Asynchronous Transfer Mode

Dimensions & Weight

Main Unit: W: 360 mm H: 91 mm D: 248.5 mm / Approx. 3.9 kg (Tentative)

Speaker: W: 110 mm H: 277 mm D: 110 mm / Approx. 1.9 kg (1pc) (Tentative)

Network Audio Amplifier SU-G30 :2999,99 €

Music Server ST-G30 :3999,99 €

Accurate Digital Technology

JENO Engine (Jitter Elimination and Noise-Shaping Optimization)
GaN-FET Driver
High-Speed Silent Hybrid Power Supply
LAPC (Load-Adaptive Phase Calibration)
Battery-Driven Clock Generator
High-Rigidity Metal Double Chassis

Noiseless Signal Technology

Digital Noise Isolation Architecture
Ultra-Low Distortion Oversampling Digital Filter
High-Res Remaster – enhanced for compressed audio
Optimally-Activated Circuit System

Technics Definitive Design

High-Rigidity Aluminum Cabinet
Symmetric Structure

Output Power

100 W + 100 W 4 Ω
50 W + 50 W 8 Ω

Dimensions and Weight

W: 430 mm H: 98.5 mm D: 424.5 mm / Approx. 11.0 kg (Tentative)

Terminal

Digital Coaxial Input x 2 / Digital Optical Input x 1 / Analog Line input x 1 / USB-A Input / USB-B Input / Phono (MM) input x 1 / Ethernet Terminal / Headphone Output / WiFi a,b,g,n/Bluetooth® (aptX, AAC, SBC) / AirPlay

Digital Input Format

Digital Coaxial:

PCM up to 192 kHz 24 bit

Digital Optical:

PCM up to 96 kHz 24 bit

DLNA, USB-A:

FLAC, WAV, AIFF, ALAC up to 192 kHz 24 bit, AAC up to 96 kHz 320 kbps, MP3, WMA up to 48 kHz 320 kbps, DSD 2.8 MHz, 5.6 MHz

USB-B:

PCM up to 384 kHz, 32 bit / DSD 2.8 MHz, 5.6 MHz, 11.2 MHz with Asynchronous Transfer Mode

Noiseless Signal Technology

Low-Noise USB Transfer
SSD
Digital Noise Isolation Architecture
Optimally-Activated Circuit System
Bit-Perfect Ripping
Rigidly-Mounted Sheltered Drive
High-Rigidity Metal Double Chassis

Technics Definitive Design

High-Rigidity Aluminum Cabinet
Symmetric Structure

Dimensions and Weight

W: 430 mm H: 98.5 mm D: 388.5 mm / Approx. 10.5 kg (Tentative)

Connection

USB 3.0 x 1 / USB 2.0 x 1 / Ether terminal x 1

Specification

USB Audio Output:

PCM up to 384 kHz 32 bit, DSD 2.8 MHz, 5.6 MHz, 11.2 MHz

DLNA:

FLAC, WAV, AIFF, ALAC up to 192 kHz 24 bit, DSD up to 11.2 MHz, AAC up to 96 kHz 320 kbps, MP3, WMA up to 48 kHz 320 kbps

Ripping format:

FLAC / WAV encode

Storage:

2.5-inch SATA SSD, replaceable
