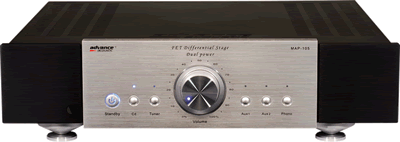

MAP105
|
Output power (6O) : Classe AB : 2 x 75 W
Frequency response : 10Hz-65 kHz (+/-3dB)
Distorsion : < 0,15%
S/N Ratio : = 90dB
Channel séparation : = 100dB
Input impedance : 100 KO
Phono input impedance : 47kO - 100 O
Input level (CD-Aux) : < 550mV
Phono input level MM/MC : 2,5mV & 0,2mV
5 input : CD, Tuner, AUX1, AUX2 and Phono MM ou Phono MC
Pre-Out
Amp IN
IR Remote control
Dimension (L x H x D): 44 cm x 11 cm x 35 cm
Weight : 9 kg |

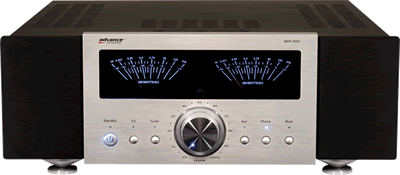

MAP305 II
|
Output power (6 O) : Classe AB - 2 x 100 W
Frequency response : 10Hz - 60kHz (+1/-3dB)
Distorsion : < 0,15%
S/N Ratio : > 90dB
Channel separation : = 100dB
Input impedance : 100 kO
Phono input impedance : 47 kO - 100 O
Input level (CD-Aux) : 550mV
Phono input level MM - MC : 2,5mV - 0,2mV
4 Input : CD, Tuner, AUX, et Phono MM ou Phono MC
Pre-Out
Amp IN
IR Remote control
Dimension (L x H x D): 44 cm x 15,5 cm x 45 cm
Weight : 15,5 kg |
MAP305DA II
|
Output power (6 O) : Classe AB : 2 x 100 W
Frequency response : 10Hz - 60kHz (+1/-3dB)
Converter : Analog Devices 24 bits x 192 kHz
Distorsion : < 0,15%
S/N Ratio : = 90dB
Channel separation : > 100dB
Input impedance : 100 kO
Phono input impedance : 47kO - 100 O
Input level (CD-Aux) : 550mV
Phono input level MM - MC : 2,5mV - 0,2mV
4 Input : CD, Tuner, AUX, et Phono MM ou Phono MC
4 Coaxial digital input
1 Optical digital input
Pre-Out
Amp IN
IR Remote control
Dimension (L x D x H) : 44 cm x 45 cm x 15,5 cm
Weight : 15,5 kg |

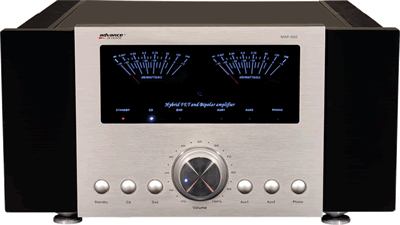

MAP800
|
Output power {6 O) : Classe AB : 2 x 200 W
Frequency response : 10Hz-75kHz
Distorsion : < 0,1%
S/ Ratio : =100dB
Channel séparation : = 100dB
Input impédance : 100kO
Phono input impedance : 47kO - 100O
Input level (CD-Aux) : 500mV
Phono input level MM/MC: 2,5mV & 0,2mV
5 Input : CD (Balanced and Unbalanced), DVD, AUX1 (Balanced and Unbalanced), AUX2
Phono MM ou Phono MC
Pré OUT
Ampli IN
IR Remote control
Dimension (L x D x H) : 44 cm x 43 cm x 24 cm
Weight : 30 kg |
