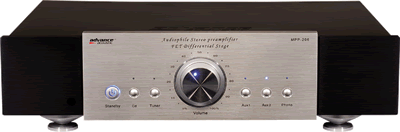

MPP206
|
Frequency response : 10Hz - 70 kHz (+1/-3dB)
Distorsion : = 0,03%
S/N Ratio : =90 dB
Channel separation : = 80dB
Iinput impedance : 100KO
Phono input impedance : 47kO - 100O
Input level (CD-Aux) : < 500mV
Phono input MM/MC : 2,5mV & 0,2 mV
Output level : 1,5 V
4 Input : CD, Tuner, Aux 1, Aux 2, et Phono MM ou MC
Pre-Ou t: XLR Balanced - RCA Unbalanced
Activ filter output.
Crossover frequency : 75 Hz - 150 Hz
IR Remote control
Dimension (L x D x H) : 44 cm x 35 cm x 11 cm
Weight : 5 kg |
MPP505
|
Frequency response : 10Hz - 70 kHz (+1/-3dB)
Distorsion : = 0,03%
S/N Ratio : = 90 dB
Channel separation : = 80dB
Input impedance : 100KO
Phono input impedance : 47kO - 100O
Input level (CD-Aux) : < 500mV
Phono input level MM/MC : 2,5mV & 0,2mV
Output level : 1,5 V
4 Input : 1 CD Balanced + Unbalanced,
Tuner, Aux 1, Aux 2
1 Input Phono MM ou MC
4 Coaxial digital input
1 Optical digital input
Pre-Out : XLR Balanced - RCA Unbalanced
Activ filter output
Crossover frequency : 75 Hz - 150 Hz
Converter 24 bits - 384kHz
IR Remote control
Dimension (L x D x H): 44 cm x 35 cm x 11 cm
Weight : 6,6 kg |
